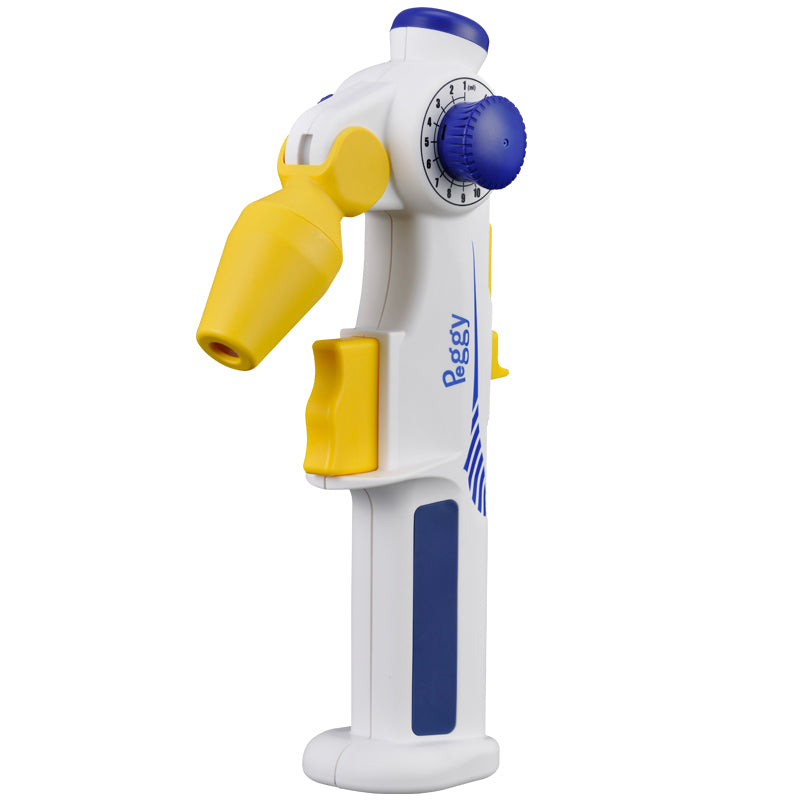

Repetitive Pipette Peggy "PG-01" (1 unit)

No battery or charging required.
Aspirate the sample all at once, dispense the necessary volume repetitively.

Setting aspiration volume
Aspiration can be set in every 1 mL for setting range 1 –13 mL.
Note: 13 mL can be dispensed in case that Watson 10 mL Serological Pipette is used.

Setting dispensing volume
Dispensing can be set in every 0.5 mL for setting range 0.5 –5 mL.

Flexible nozzle-angle
Adjustable nozzle angle in every 10 degrees up 50 degrees.

Simple maintenance
Easy to remove & set spare parts
① Nozzle cover: Autoclavable
② Joint packing: Autoclavable
③ Water stop filter: Replaceable

■Aspiration

① Set the aspiration volume using the aspiration-volume-setting dial.
Note: DO NOT set volume exceeding the volume of serological pipette.

② Attach the serological pipette to the Peggy nozzle.

③ Push the aspiration button slowly to aspirate the sample. After aspiration, slowly lift the Peggy out of the test tube.

[Point] Keeping the serological pipette vertically.

■Dispensing

① Set the dispensing volume using the dispensing-volume-setting dial.

② Push the dispensing button one by one.
Hold down the dispensing button until the solution no longer comes out of the tip. Each time the button is pushed, the set volume is dispensed.

[Point]Make sure that the dispensing button returns all the way to the top after dispensing. Keeping the serological pipette vertically.

Dispensing volume can be changed for each dispensing.

Repetitive Pipette Peggy "PG-01" User Instruction Download
